Example: turing

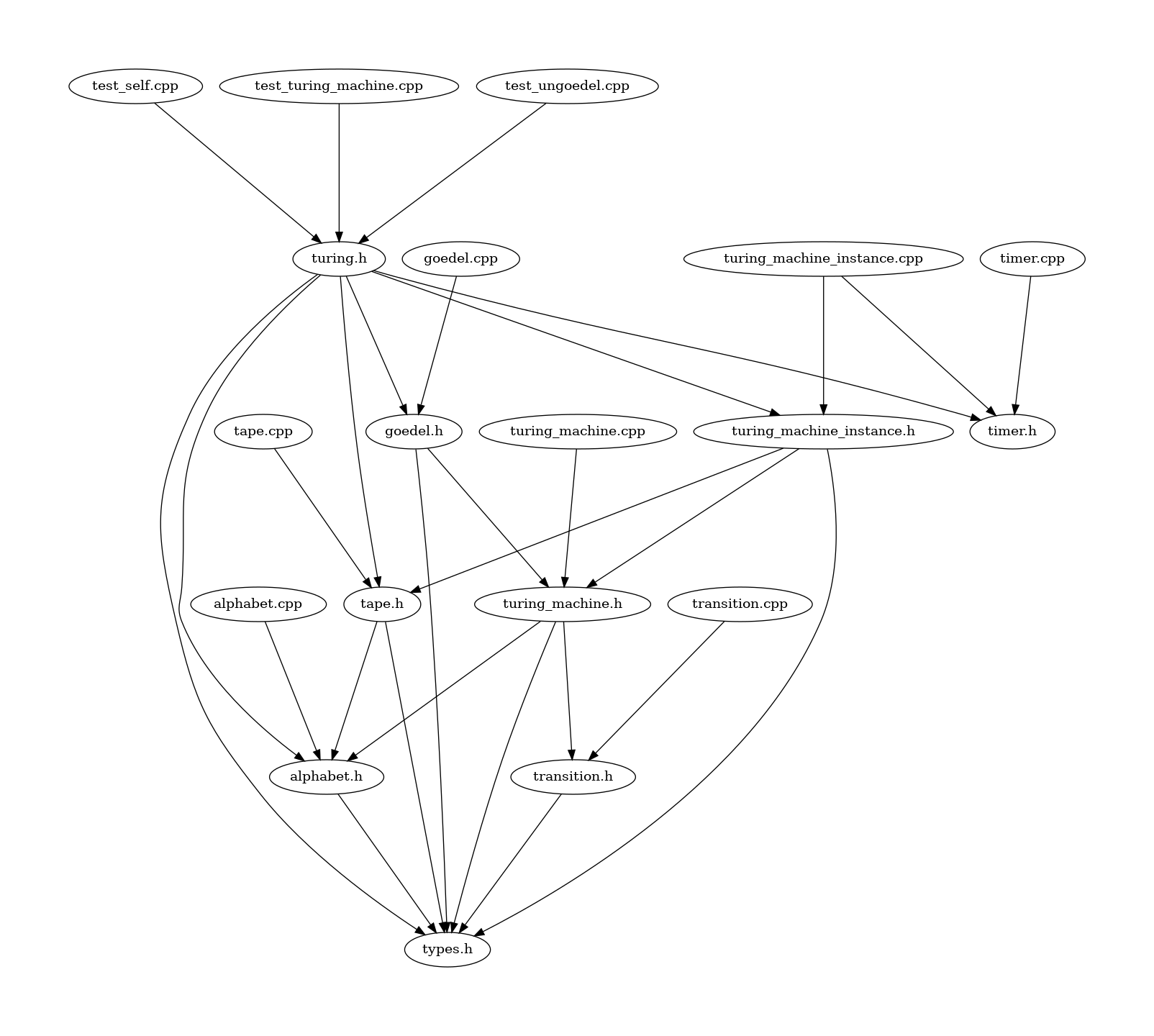

The screenshot shows the file dependencies of the turing software. All files with absolute path names (include files of third-party libraries) have been omitted. The corresponding .dot file is here
This script analyzes the file dependencies in C or C++ source code as generated by gcc's -H option. Alternatively, it processes depend.make files generated by cmake. The dependencies are described as a graph in the .dot file format. The script includes various filters to postprocess the output, e.g., removing all nodes not matching a given regular expression.
|
|
